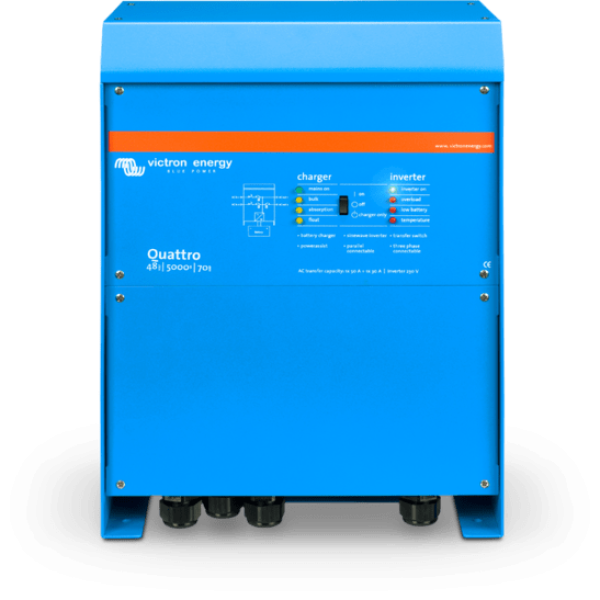

Victron Quattro 48/10000/140 10kVA inverter
Original price was: KSh 618,000.00.KSh 515,000.00Current price is: KSh 515,000.00.
Victron Quattro 48/10000/140 10kVA inverter
KSh515,000
| Input Battery Voltage Range | 38 – 66V |
| Nominal AC output Voltage | 230V AC |
| Continuous Power Rating | 10000VA |
| Peak Inverter Efficiency | 96% |
| Waveform | Pure Sine Wave |
| Nominal DC Input Voltage | 48V |
| AC input Voltage Range | 187-265 VAC |
| Frequency Range AC Input | 45 – 65 Hz |
| Dimensions | 470 x 350 x 280 |
| Weight | 45kg |
Victron Quattro 48/10000/140 10kVA inverter
The Victron Quattro 48/10000/140 10kVA inverter – similar to the MultiPlus – the Victron Quattro 48/10000-140-100/100 is also a combined 10000W inverter and charger. The product, additionally can accept two AC inputs and automatically connect to the active source.
Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split phase operation and parallel operation. You have space issues, where to install it?
Here are the dimensions (in millimeters) for the most sold Victron Quattro inverter charger models in DIY Solar Store:
- 48v-5000 (444x328x240)
- 48v-8000 (470x350x280)
- 48v-10000 (470x350x280)
- 48v-15000 (572 x 488×344)
TWO AC INPUTS & TWO AC OUTPUTS
The 48V 10kW Quattro battery inverter charger can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect the product to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the 10000W inverter/charger takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.
THE VICTRON QUATTRO 10KW (10000W) INVERTER CHARGER HAS A UNIQUE POWERASSIST FEATURE
The 48V 10kW Victron Quattro inverter charger will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
VIRTUALLY UNLIMITED POWER THANKS TO PARALLEL OPERATION
Perfect parallel operation. Up to 10 pcs of 10000W Quattro units can be connected in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.
NON-STOP SOLAR ENERGY – THE PERFECT OFF GRID DIY SOLAR SOLUTION
AC power will be available even during a grid failure. The 48V 10000W inverter-charger can be used in off grid as well as grid connected PV systems and other alternative energy systems. Loss of mains detection software is available for all Victron Quattro models.
SYSTEM CONFIGURATION FOR VICTRON QUATTRO 10KW (10000W):
- In case of a stand-alone application, if settings have to be changed, this can be done in a matter of minutes with a DIP switch setting procedure.
- Parallel and three phase applications can be configured with VE.Bus Quick Configure and VE.Bus System Configurator software.
- Off grid, grid interactive and self-consumption applications, involving grid-tie inverters and/or MPPT Solar Charger Controllers can be configured with Assistants (dedicated software for specific applications).
REMOTE MONITORING AND CONTROL
Monitor and control your 48V 10kW Quattro battery inverter charger and system or systems’ locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your Quattro to setting a Geofence for hire vehicles and more.
-
-
-
Victron Quattro 48/10000/140 10kVA inverter specs
-
-
| Input Battery Voltage Range | 38 – 66V |
| Nominal AC output Voltage | 230V AC |
| Continuous Power Rating | 10000VA |
| Peak Inverter Efficiency | 96% |
| Waveform | Pure Sine Wave |
| Nominal DC Input Voltage | 48V |
| AC input Voltage Range | 187-265 VAC |
| Frequency Range AC Input | 45 – 65 Hz |
| Dimensions | 470 x 350 x 280 |
| Weight | 45kg |
-
-
-
Victron Energy B.V. designs and sells power solutions for automotive, industrial, marine, mobility, off-grid, and telecom markets. Its products include inverters, chargers, inverter/chargers, isolation transformers, autotransformers, battery monitors, batteries, panels and system monitoring products, DC distribution systems, transfer switches, cables, battery isolators and combiners, DC/DC converters, battery protection products, multipower products, solar products, solar charge controllers, and solar inverters and panels. The Company was founded in 1975 and is based in Almere Haven, the Netherlands. The best off-grid solar products from NASDAQ, Bloomberg and Fortune 500 listed solar component manufacturers at best price; suitable for all weather conditions.
-
-
